热电偶

Thermocouple Solutions

Robertshaw is the industry leader for gas heating and appliances, and their thermocouple solutions provide easy installation, advanced features and high versatility. They are the top choice for OEMs around the world for both residential and commercial applications.

Quick Connect Thermocouple

申请： 商业烹饪

罗伯特肖^® Quick Connect Thermocouple features a patented, ultra-compact coaxial connector for simplified installation. This patented design stands out as the most compact solution available, incorporating premium quality materials to ensure reliable ground contact and significantly simplifying installation. Its refined design, including a new hot joint, provides a notable 10% increase in temperature sensitivity compared to current market standards.

特点和优点

Easy installation
Utilizes premium quality materials for reliable ground contact
Achieves higher sensitivity with a smaller hot joint
Iron-Copper alloy for the wire
For Cooking Hub applications

规格

Hot joint maximum working temperature: 750°C
Thermocouple length: Up to 750mm
Connector maximum height: 17mm

T46 and 2C Series Thermocouples

T46 and 2C Series

T46 and 2C Series Thermocouples

申请： 商业烹饪

罗伯特肖^® T46 and 2C Series Thermocouples are the industry leader for gas heating and appliances. Their primary function is to monitor the pilot flame. The Robertshaw thermocouples are made of two different metals with various lengths. The T46 thermocouples have threaded mounting. The 2C thermocouples offer easy snap-in installation into the majority of pilot burners.

特点和优点

Easy installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Various lengths available for multiple applications

规格

Lead lengths range from 12″ to 72” [305mm to 1830 mm]
Open circuit output: 25 and 30 millivolts
Connection type: Male connector nut

机构认证：

CSA 153207-1097670

下载规格表

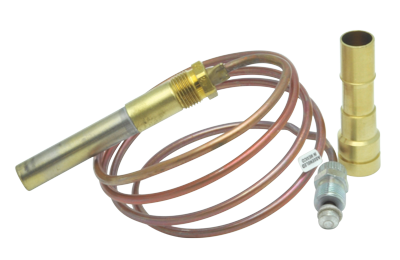

TP-75 and CP-2 Series Thermopiles

TP-75 and CP-2 Series 2

TP-75 and CP-2 Series Thermopiles

申请： 商业烹饪

罗伯特肖^® TP-75 and CP-2 Series Thermopiles are the industry leader for gas appliance applications. They monitor pilot flame and generate power for use with self-powered gas control systems. The thermopile is the assembly of many thermocouples, increasing the electrical output. Robertshaw offers two types of thermopiles: the TP-75 with a two wire spade connection, and the CP-2 with a coaxial connection.
