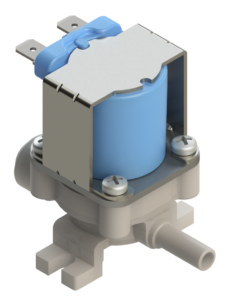

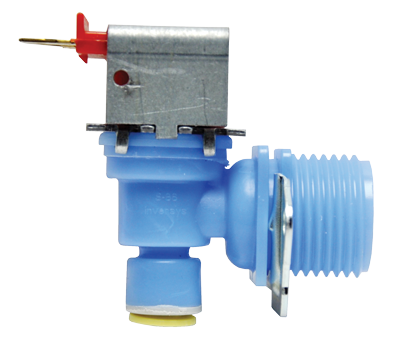

S-86 Series Water Valve

Aplicación: Commercial Cooking, Refrigeration, Laundry, Dishwashing and Water Purification

El Robertshaw^® S-86 Series Water Valve is designed for low flow applications in the residential and appliance market. The valve has a single inlet, controls one output, and features the low profile Hydra^® solenoid produced using a fully automated arc weld process to eliminate open circuit concerns in the field.

Características y ventajas:

• Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
• Body material provides high resistance to corrosion and mineral deposits
• Modular design allows physical fit and plumbing optimization
• Self-centering armature delivers superior contamination resistance

Especificaciones:

• Body Material: Polypropylene
• Body Configuration: Right angle, straight through
• Electrical Connection: 1/4” or 3/16” spade, RAST 2.5
• Electrical Rating: 110/120-127V AC, 50/60 Hz; 220-240V AC, 50/60 Hz
• Power Consumption: 20 Watts, others depending on application
• Inlet Size: 1/4” or 5/16” quick-connect, 1/4″ compression or 3/4” garden hose
• Outlet Size: 1/4” or 5/16” quick-connect, 3/8” hose barb
• Maximum Water Temperature: 100°F (37.8°C)
• Ambient Temperature: 77°F (25°C) maximum
• Coil Insulation: UL rated Class A (105°C)
• Flow Rate: Up to 1 GPM
• Differential: 175 PSI maximum

Certificaciones de la Agencia:

• UL MH6499
• CSA 62581
• Certain models conform to IEC 60730-1 and -2, and IEC 60730-2-8
• ANSI/NSF Standard 169, WRAS versions available on request
• Meets low lead requirements for UL372

Descargar hoja de especificaciones
